500mm Stainless Pole Fuel Tank Sender
Stainless steel construction. No internal parts to go wrong.

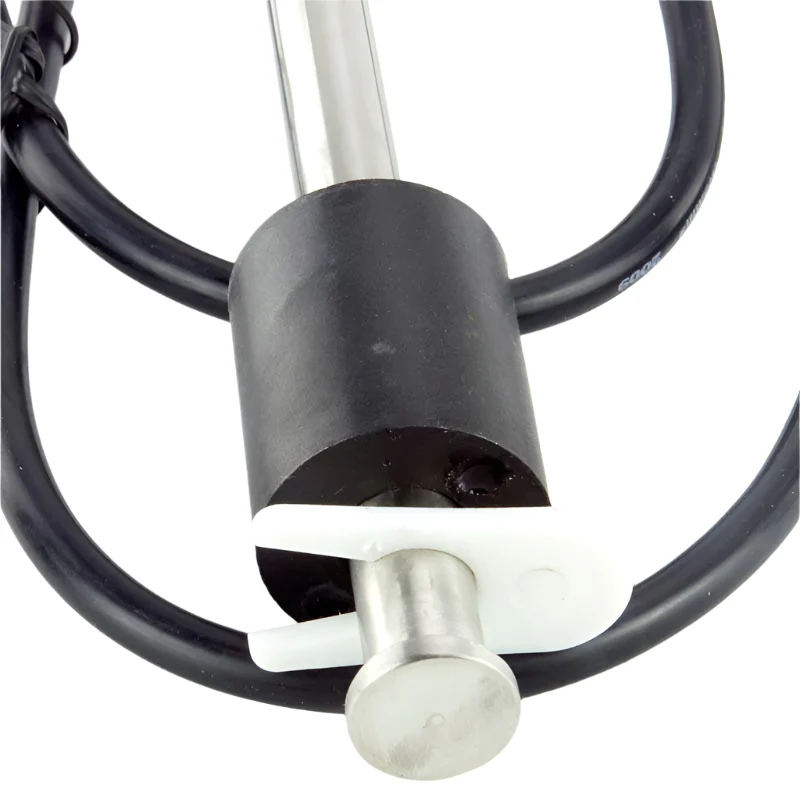

A metal-impregnated, lightweight float rises up and down the sender tube as the fluid level changes.
A simple (white) adjustable clip allows you to set the bottom float position.
800mm heavy two core flex lead.
Flange diameter 69mm.
Five, 5.4mm holes on a 54mm PCD.
Fits through a 33mm hole.
500mm measured from the underside of the flange to the end of the tube.
20mm projection above mounting surface.

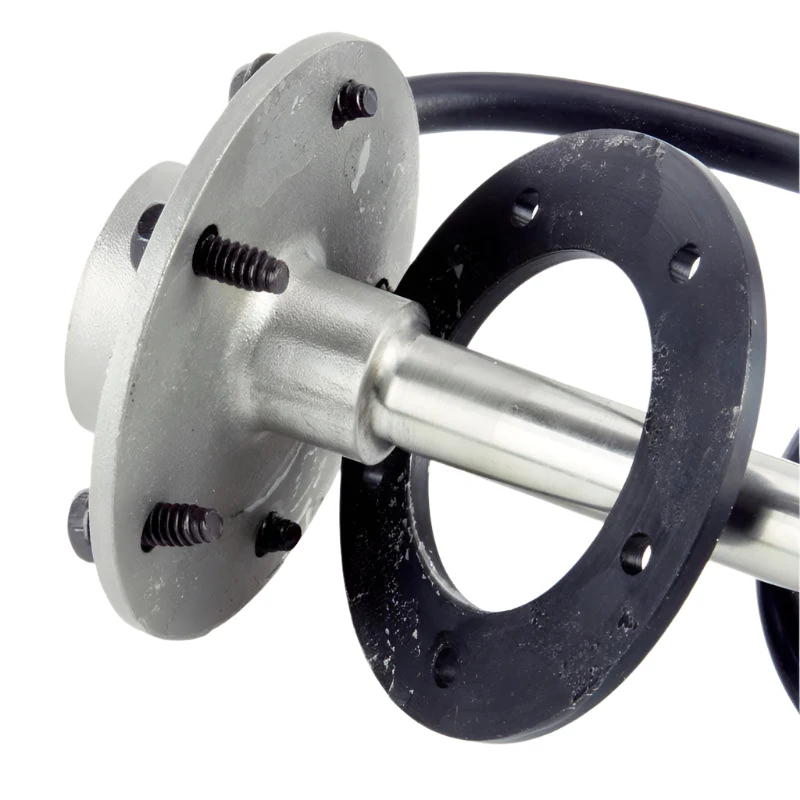

3mm thick fuel-proof rubber gasket.
5 Screws supplied 10-24 UNC
Resistance 0 (Empty) - 180 (Full) ohm range
NOTE: If your instrument does not match the resistance of this sender you may get inaccurate readings.
500mm FUEL TANK SENDER #FUSEND500
Original: $139.18
-70%$139.18
$41.75
Description
Stainless steel construction. No internal parts to go wrong.
A metal-impregnated, lightweight float rises up and down the sender tube as the fluid level changes.
A simple (white) adjustable clip allows you to set the bottom float position.
800mm heavy two core flex lead.
Flange diameter 69mm.
Five, 5.4mm holes on a 54mm PCD.
Fits through a 33mm hole.
500mm measured from the underside of the flange to the end of the tube.
20mm projection above mounting surface.
3mm thick fuel-proof rubber gasket.
5 Screws supplied 10-24 UNC
Resistance 0 (Empty) - 180 (Full) ohm range
NOTE: If your instrument does not match the resistance of this sender you may get inaccurate readings.
500mm FUEL TANK SENDER #FUSEND500
