290mm Stainless Pole Fuel Tank Sender
Stainless steel construction. No internal parts to go wrong.
A metal-impregnated, lightweight float rises up and down the sender tube as the fluid level changes.

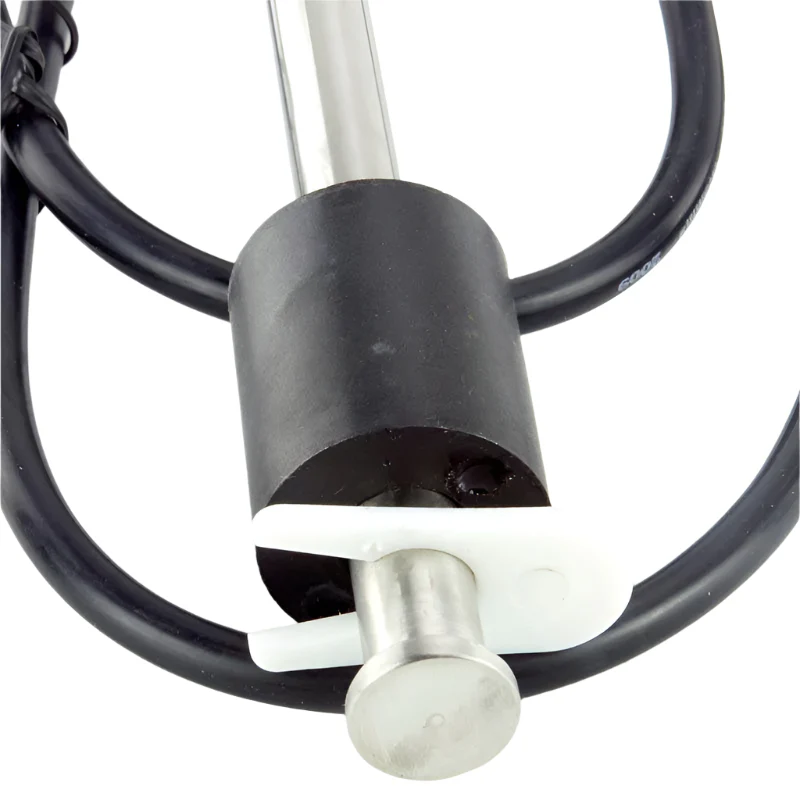

A simple (white) adjustable clip allows you to set the bottom float position.
800mm heavy two core flex lead.Â

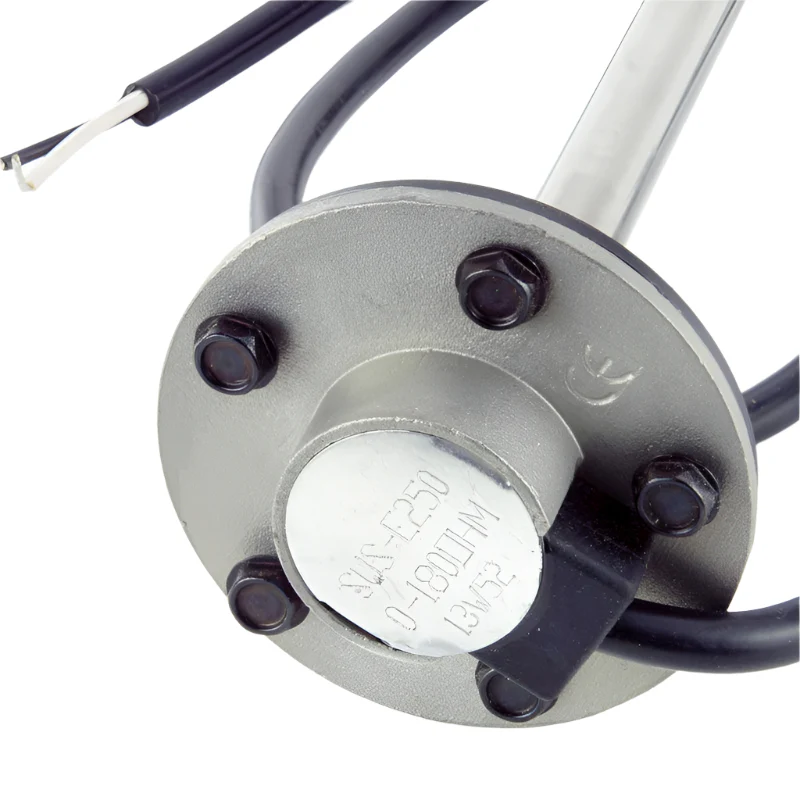

Flange diameter 69mm.
Five, 5.4mm holes on 54mm PCD.
Fits through a 33mm hole.
290mm measured from the underside of the flange to the end of the tube.
20mm projection above mounting surface.
3mm thick fuel-proof rubber gasket.Â
5 Screws supplied 10-24 UNC
Resistance 0 - 180 ohm range. (180 Full)Â
NOTE: If your instrument does not match the resistance of this sender you may get inaccurate readings.
290mm FUEL TANK SENDER #FUSEND290
Original: $112.67
-70%$112.67
$33.80
Description
Stainless steel construction. No internal parts to go wrong.
A metal-impregnated, lightweight float rises up and down the sender tube as the fluid level changes.
A simple (white) adjustable clip allows you to set the bottom float position.
800mm heavy two core flex lead.Â
Flange diameter 69mm.
Five, 5.4mm holes on 54mm PCD.
Fits through a 33mm hole.
290mm measured from the underside of the flange to the end of the tube.
20mm projection above mounting surface.
3mm thick fuel-proof rubber gasket.Â
5 Screws supplied 10-24 UNC
Resistance 0 - 180 ohm range. (180 Full)Â
NOTE: If your instrument does not match the resistance of this sender you may get inaccurate readings.
290mm FUEL TANK SENDER #FUSEND290
