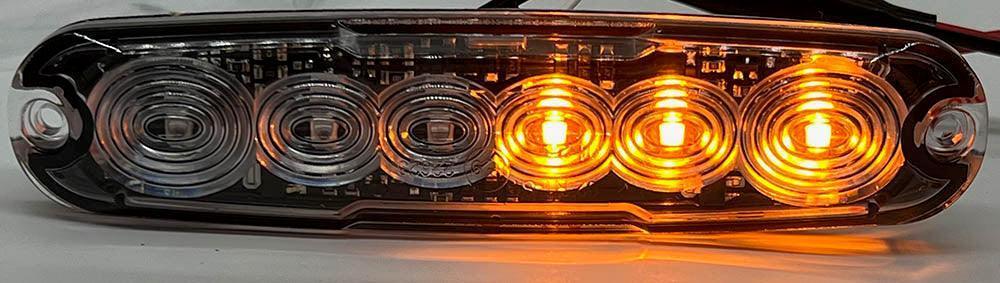

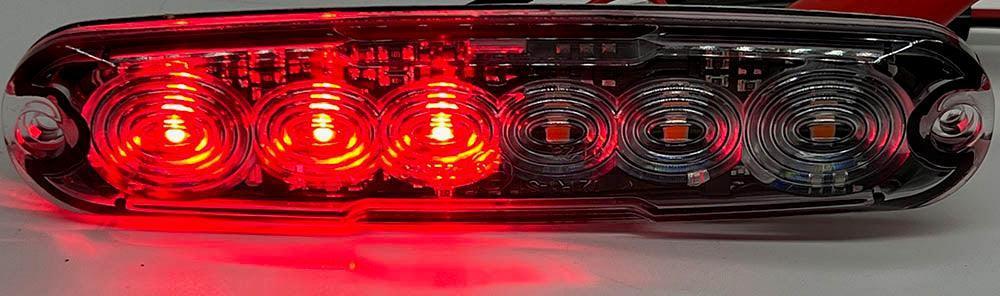

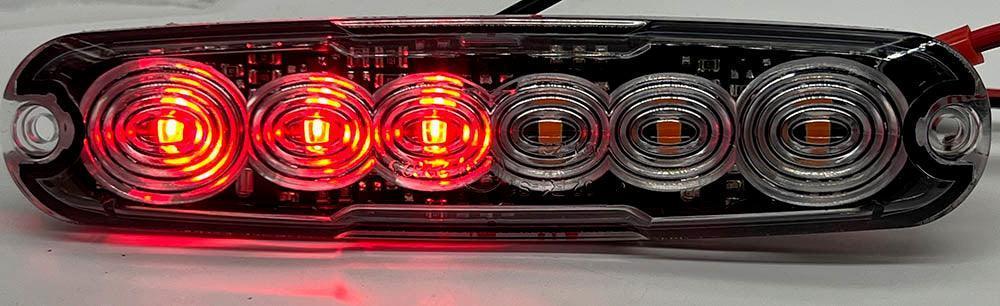

130mm x 35mm Self Adhesive Stop Tail Indicator Lamp

'E9' Marked.

12 / 24 volt.

Only 130mm x 35mm x 10mm thick.

Two, 4mm, counterbored 4mm mounting holes at 120mm centres.

Peel-off 3M self-adhesive foam backing pad.

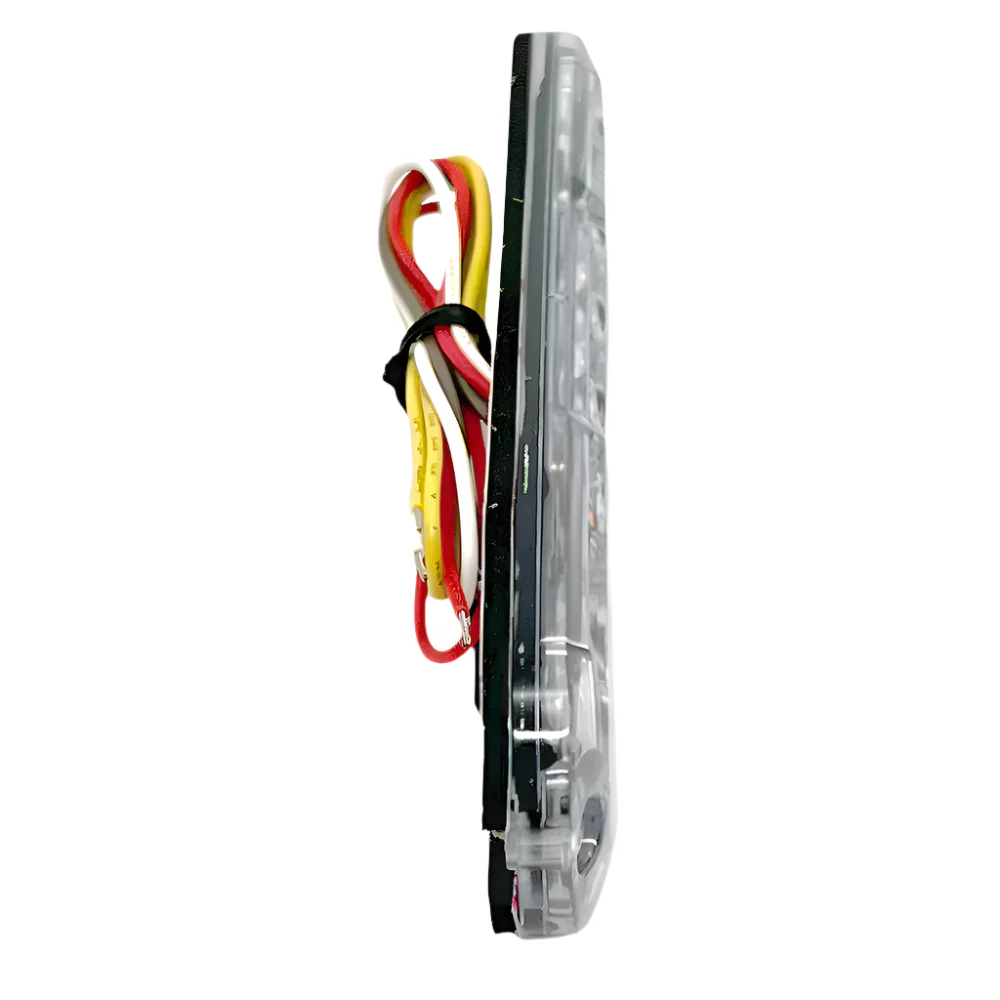

WIRING:

WHITE - Earth -12v

RED - Stop

BROWN - Tail

YELLOW - Indicator

100% Waterproof

130mm x 35mm SELF ADHSIVE STOP TAIL INDICATOR LAMP EACH #RL145
