125mm Round Lamp Housing Black
HOUSING FOR 125mm DIAMETER LAMPSĀ
Gloss Black moulded ABS housing for 125mm diameter rear lamps.
Shown with a #RL53.
Moulded from 2mm thick ABS sheet it's mounting face diameter is 130mm.
This means that a 125mm diameter lamp will sit nicely on the edge of the moulding radius.

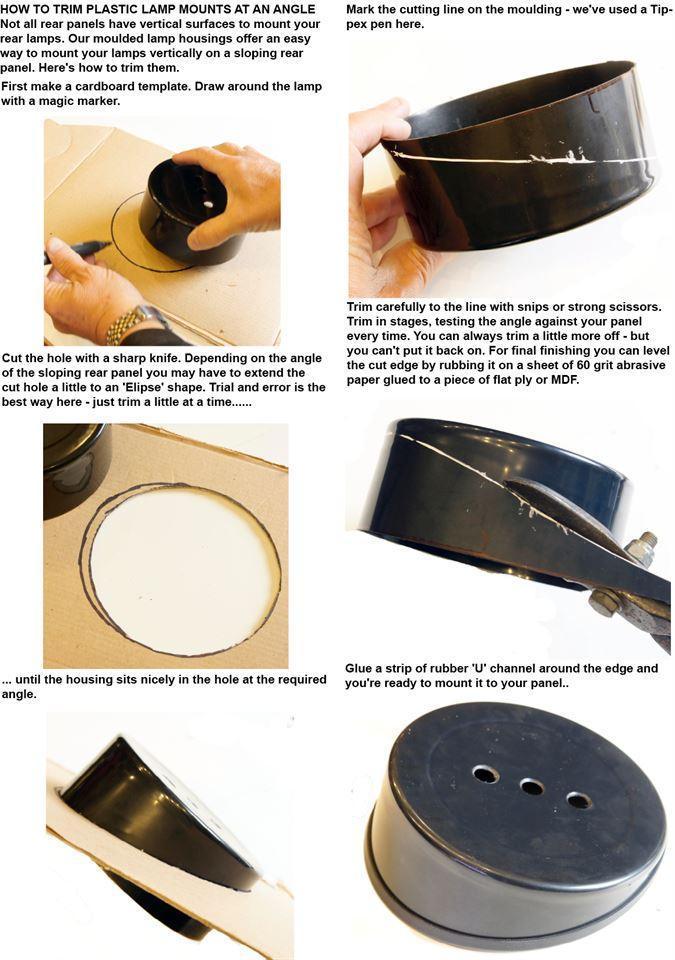

The height of the housing is 60mm so you can trim it to mount on an angledĀ rear panel up to 20Āŗ off vertical.

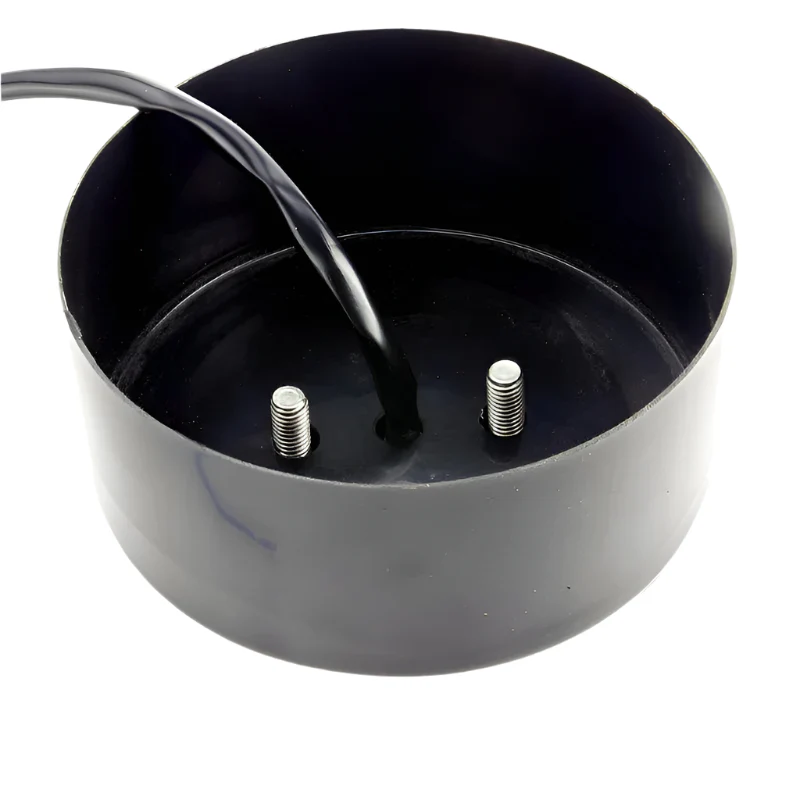

Housing is shown drilled for a #RL53 but will be supplied undrilled.Ā
MOUNTING TIPS: The trimmed edge can be fitted with our #TRMU2 rubber edging trimĀ giving a good contact point with your panel. The housing can be mounted with long studsĀ and / or spacing tubes through the panel.
GLOSS BLACK LAMP HOUSINGS SINGLEĀ #HOU125
Original: $13.26
-70%$13.26
$3.98
Description
HOUSING FOR 125mm DIAMETER LAMPSĀ
Gloss Black moulded ABS housing for 125mm diameter rear lamps.
Shown with a #RL53.
Moulded from 2mm thick ABS sheet it's mounting face diameter is 130mm.
This means that a 125mm diameter lamp will sit nicely on the edge of the moulding radius.
The height of the housing is 60mm so you can trim it to mount on an angledĀ rear panel up to 20Āŗ off vertical.
Housing is shown drilled for a #RL53 but will be supplied undrilled.Ā
MOUNTING TIPS: The trimmed edge can be fitted with our #TRMU2 rubber edging trimĀ giving a good contact point with your panel. The housing can be mounted with long studsĀ and / or spacing tubes through the panel.
GLOSS BLACK LAMP HOUSINGS SINGLEĀ #HOU125
