100 Amp Dual Busbar Box
DUAL BUSBOX 100 AMPS
Here's a lovely quality, heavy duty BUSBAR with two separate bars with a removable link.
Each bar has two M6 studs, nuts and washers and six M4 pozi screws and washers.

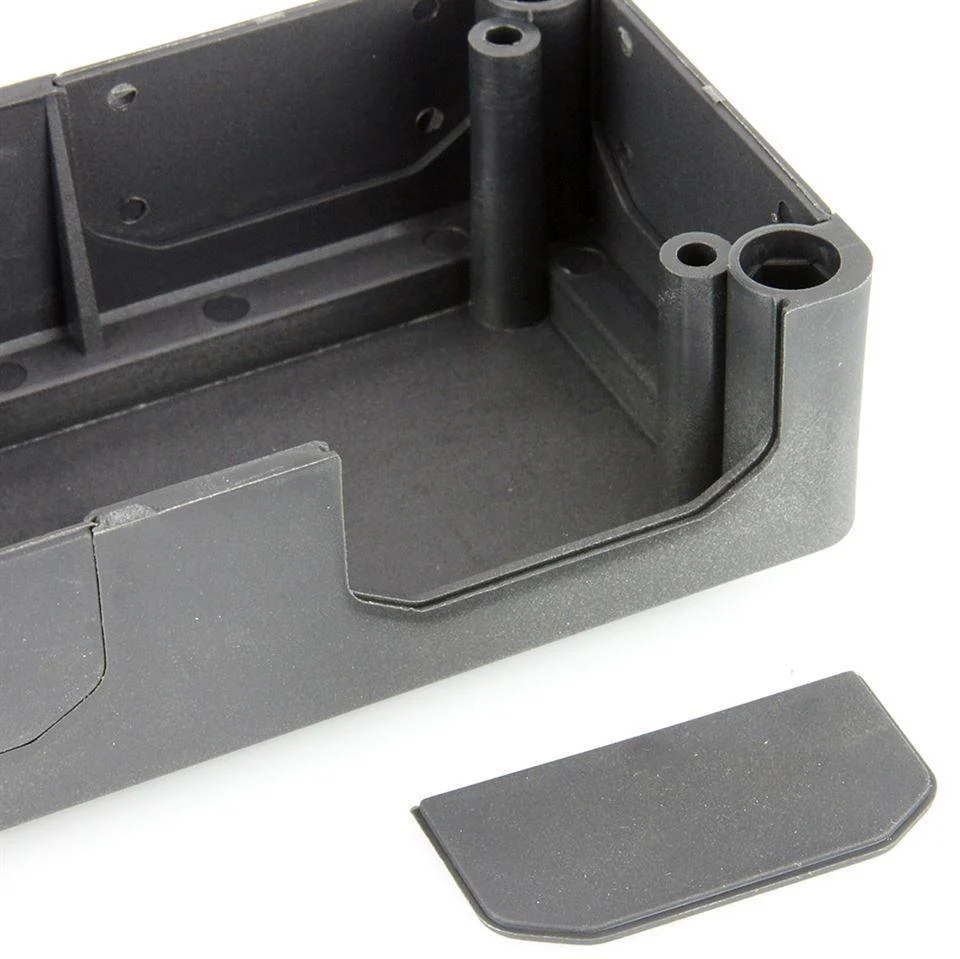

The glass-reinforced-nylon box has six removable windows around the lid that just slide in and outĀ for maximum versatility in your cable routing.
Size 138mm x 69mm x 45mm high.Ā
Base mounts through four 5mm holes at 42mm x 110mm centres.
The lid screws to the base with four Pozi screws into captive nuts.
There's even a non-slip rubber insert in the base.
Weight 345 gms.
Maximum 100 Amps
100 AMP BUSBAR 2 BOX #BUSBOX2
Original: $45.07
-70%$45.07
$13.52
Description
DUAL BUSBOX 100 AMPS
Here's a lovely quality, heavy duty BUSBAR with two separate bars with a removable link.
Each bar has two M6 studs, nuts and washers and six M4 pozi screws and washers.
The glass-reinforced-nylon box has six removable windows around the lid that just slide in and outĀ for maximum versatility in your cable routing.
Size 138mm x 69mm x 45mm high.Ā
Base mounts through four 5mm holes at 42mm x 110mm centres.
The lid screws to the base with four Pozi screws into captive nuts.
There's even a non-slip rubber insert in the base.
Weight 345 gms.
Maximum 100 Amps
100 AMP BUSBAR 2 BOX #BUSBOX2
